SANITARY SIGHT GLASS/ SANITARY SIGHT CLEANING BALL

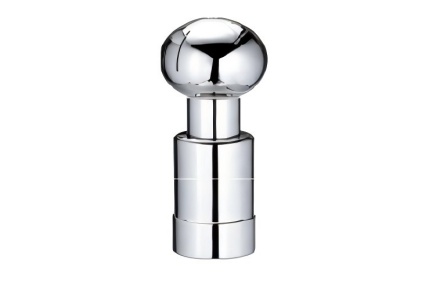

Sanitary Female Thread Rotary Cleaning Ball


Technical Specifications

  1. Material Construction

    • Body: SUS304/316L stainless steel (mirror-polished, Ra ≤0.8μm) ‌

    • Seals: FDA-compliant EPDM/FKM (temperature-resistant up to 130°C) ‌

  2. Connection & Design

    • Thread Type‌: Female thread (standard sizes: 0.5"–2.5", DN15–DN65) ‌

    • Rotation‌: Self-driven rotary mechanism for 360° spray coverage ‌

    • Surface Finish‌: Electropolished internal channels (EHEDG-compliant) ‌

  3. Performance Parameters

        Parameter    Value
        Max Pressure    10 bar ‌
        Temperature Range    -20°C to +130°C ‌
        Flow Rate    Adjustable via orifice size ‌
  4. Certifications

    • CE, 3-A sanitary standards ‌

    • CIP-compatible design ‌

  5. Applications

    • Dairy/pharmaceutical tank cleaning

    • High-purity fluid systems
