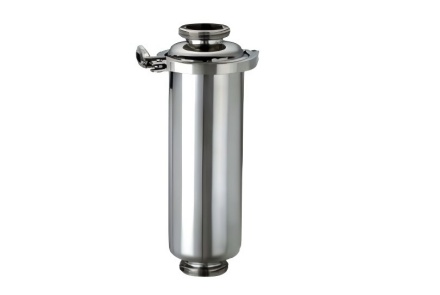

Sanitary Pipeline Filter
1. Key Specifications
Materials:
Body: SS304/316L with mirror polish (Ra 0.4–0.8μm)
Filter Elements: Sintered metal (5–200μm) or membrane (0.05–5μm)
Pressure Rating: 0.6–10 MPa (varies by design)
Connections: Tri-clamp (common), weld, or flange types
2. Industrial Applications
Food & Beverage:
Dairy processing (CIP-compatible designs)
Brewery wort filtration (38–51mm pipe OD models)
Pharmaceutical:
Purified water systems (0.22μm sterile filtration)
Biopharma (ASME BPE-compliant units)
