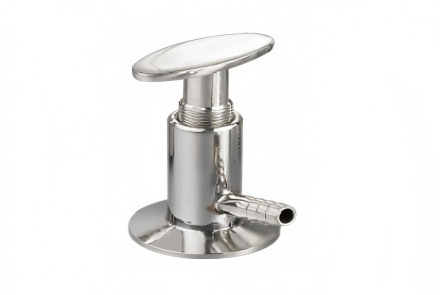

Sanitary Clamped Sampling Valve
1. Product Definition & Key Features
Design: Hygienic clamp-type valves with tri-clamp (Tri-Clover) connections for quick assembly/disassembly, ensuring zero dead zones and CIP/SIP compatibility
Materials: Typically constructed from SS304/316L stainless steel with Ra≤0.8μm surface finish for FDA/EHEDG compliance
Seals: PTFE/EPDM gaskets for chemical resistance and sterile conditions
2. Types & Configurations
3. Technical Specifications
Sizes: 1/4" to 3/4" (DN8-DN20), customizable per ISO/DIN/SMS standards
Pressure/Temp: Up to 6.4MPa at -20°C~+135°C (EPDM seals)
Certifications: 3A, GMP, and ISO 2852 for sanitary compliance
