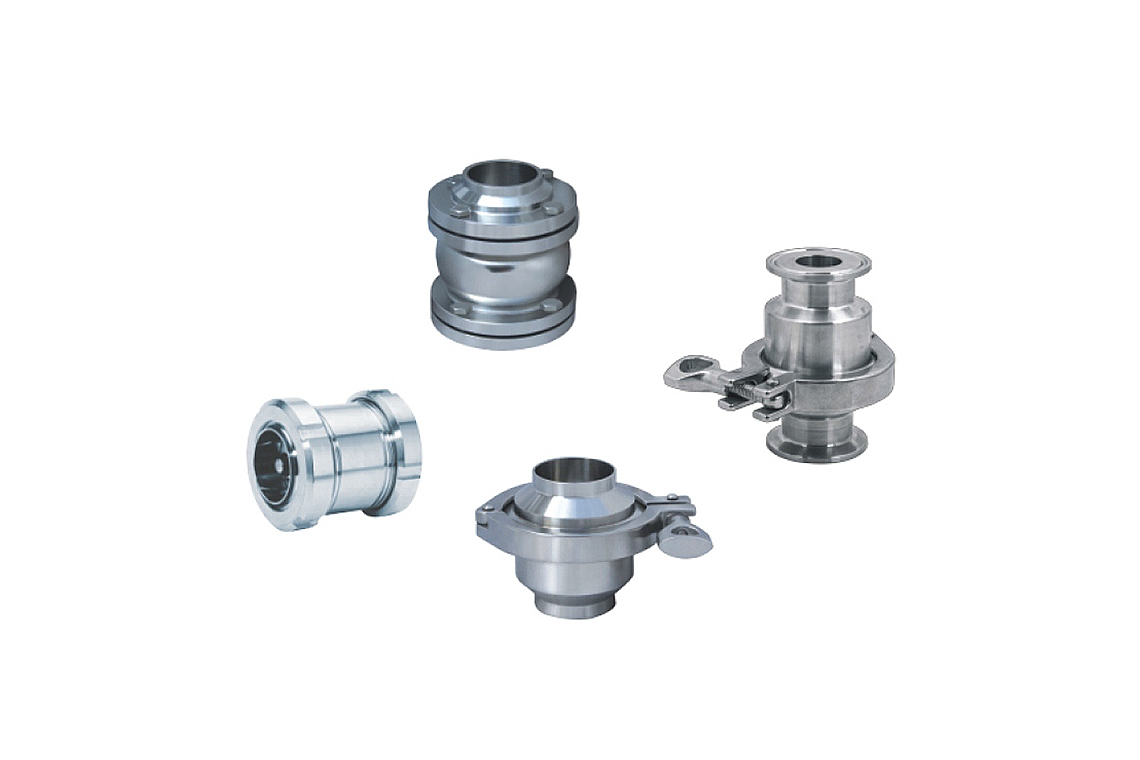

Sanitary Check Valve(YZ)
Application:
This type ofcheckvalveis used in the stainless steel piping systern to achieve the purpose ofpreventing backflowoffluid.
Working principle
Check valve is a valve on the flow of the medium itself automatically open and close the valve. when the pressure exceeds the lower part of the valve stem yalve stem above the pressure and spring force when the check valve opens; when under pressure balance valve stern when the valve is closed, so as to achieve the medium one-way flow in pipeline the liquid, prevent backflow, preventaccidents.
Material :
Steel components: stainless steel304,
stainless steel316L.
Sealing ring: silicone rubber (VMQ)
fluorine rubber(FPM) three yuan (EPDM)
Standard Design
There are a variety ofstandard check valve series can be provided to the customer, that is, for the DIN standard series, 3A standard series, SMS standard series, ISO/DF standard series, BS RJTstandardseries,ASME/BPE and otherstandard series.
The valve body ofthe check valve is divided into two parts, which are assembled together bythe clamping hoop and sealed by a special sealing ring. A guide disc and four guide rods to guide the spring, spool and is equipped with O type sealing ring.The type of check valve series is welded. clamp type and external threaded connection port, can be suitable for all kinds ofpipe connection.
Technical Data
lfthe check valve is installed in a vertical pipe, the valve is required to open the pressure of the maximum transmission materlal pressure is 1.0Mpa, the temperaturerangeis-10℃-140℃.
