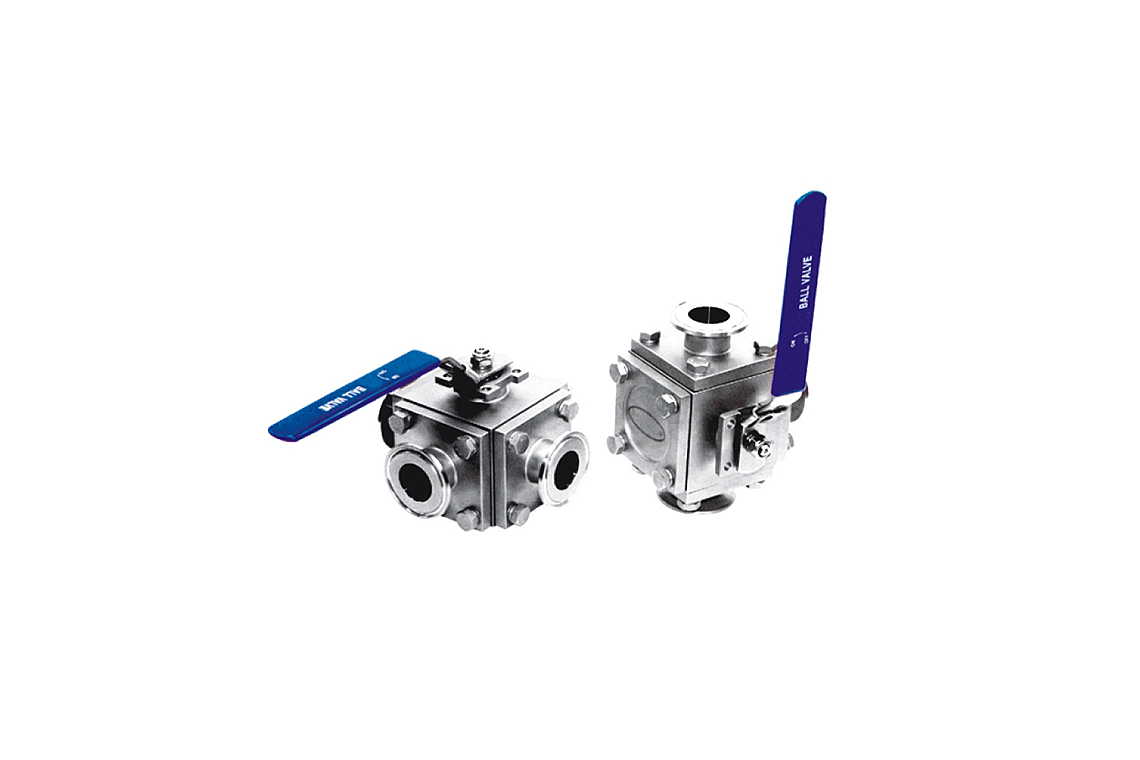

Three-Way Non-Retention Ball Valve
Applications
Sanitarydesign ofthe valve, in the food processing, beverage, fruit juice, wine, bio pharmaceutical and other felds have a wide range of applications. Three way ball valve, with a very flexible combination of columns, such as, L andT type can be replaced atthe scene, import and export direction can be any combination of changes to ensurezero dead,zerostranded.
Technical specifications
Specification:1"-4",DN25-DN100 Material: 1.4301/304316L/1.4404 Washers:PTFE,TFM(FDA177.1550) Maximumtemperature:-20to150C(standard)-30Cto200c(option) Pressurerange: 10-30bar(dependingon seal material andtemperature) Operation: manual, pneumatic, electric Surface treatment:innersurface Ra0.6u m, External blast Certification:PED/97/23/EC,ЗA,FDA Automaticconfiguration: process controller/valve positioner, 0/4....20mA, 05/10Vvalvetop control unit, AS-lbus communicati- on,termninal connection(option)positionsensor NPN- PNP (option)
