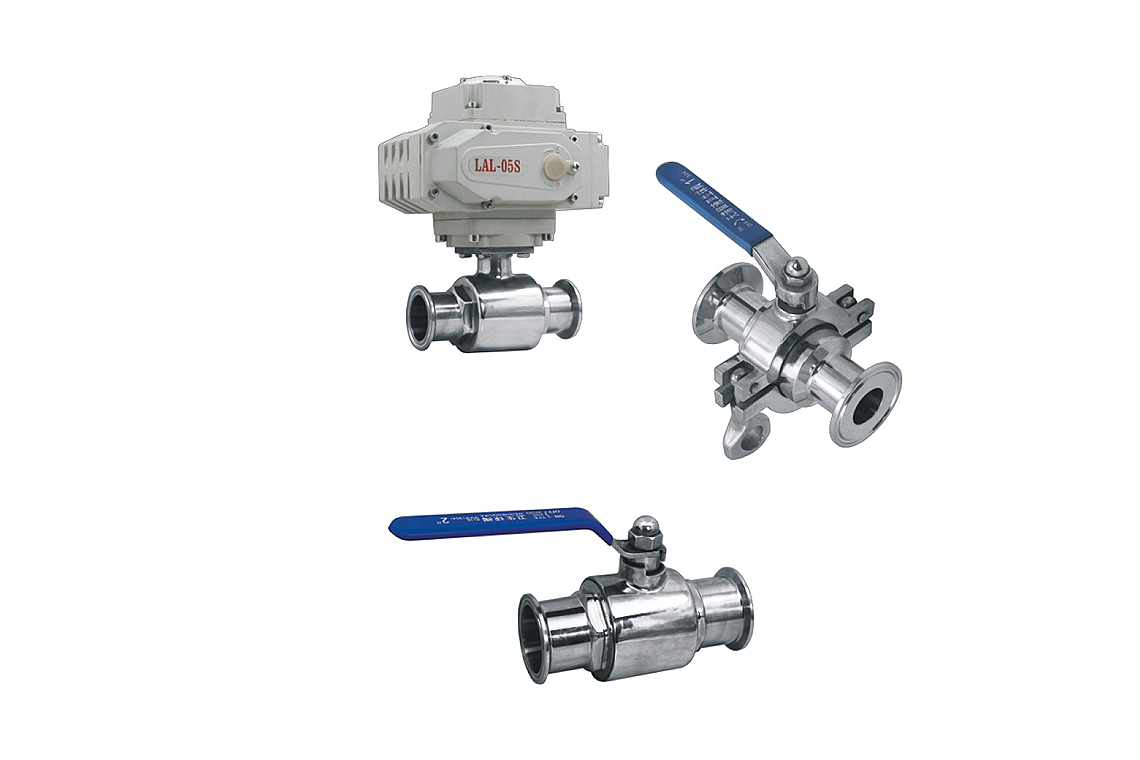

Sanitary Straight Ball Vaive (YQ)
Working principle
Through the 90° degree rotating handle, which is driven by90° degrees through the cavity of the precise manufacture ofthe ball, in order to open orclose the valve, to control the flowofmedia.
Application
This type of ball valve series is a sanitary type of material transfer control of a class ofvalve series.Widely used in food and beverage processing, as well as in the pharmaceuticalandchemical industry.
Standard Design
There are various standards of the valve series can be provided to the customer, that is, for the DlN standard series, 3A standard series, SMS standard series, ISO/lDF standard series, BS/RJT standard series, ASME/BPEandotherstandardseries. The ball valve components generally include: a handle, a ball with a through cavity, the valve body, the valve shaft and shaft sealing ring. YEK the existing ball valve series specifications are: welded ball valve, clamp type ball valve, screw type ball valve and so on.
Material :
Steelcomponents:stainless steel304, stainless steel316L. Seal: PTFEgasket, O type sealing ring

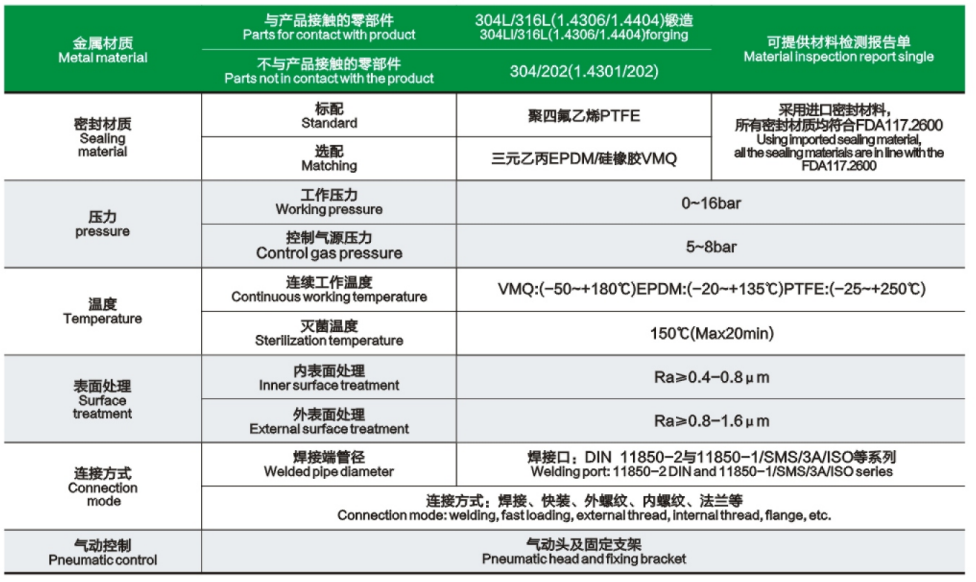

Technical Parameter
