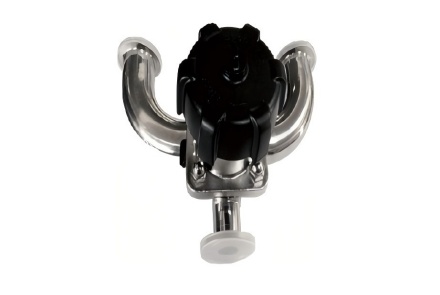

Sanitary Clamped U-type Diaphragm Valve
Product Details Return to Series
Size: DN15- DN150, 1 "-6"
Connection types: welding type, quick installation type, threaded type, clamp type, wafer type, etc
Drive mode: manual, worm gear drive, pneumatic drive, electric drive
Belonging to: Sanitary Valve Series
Standards: ISO, DIN, IDF, SMS, 3A, etc
Material: Various stainless steel materials such as sus304, sus316L, etc
Product Description: Sealed well, long service life
Quality: The product is processed with high-end polishing equipment both inside and outside to meet the surface precision requirements
Sealing rings: EPDM, NBR, PTFE
Packaging: cardboard/wooden box packaging/plastic
Work pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa
Working temperature: -10 ℃+100 ℃
Applicable media: liquids, gases, oils, various highly corrosive chemical media
Application scope: Food, beverages, pharmaceuticals, dairy products, beer, and fine chemical
